BSIDE Handheld Thermal Imaging Camera 240X240 Temperature Meter For Repair PCB Automobile Pipeline Detection Power inspection

$288.99 USD

~~$0.00 USD~~ $288.99 USD

Sale Sold out

Shipping calculated at checkout.

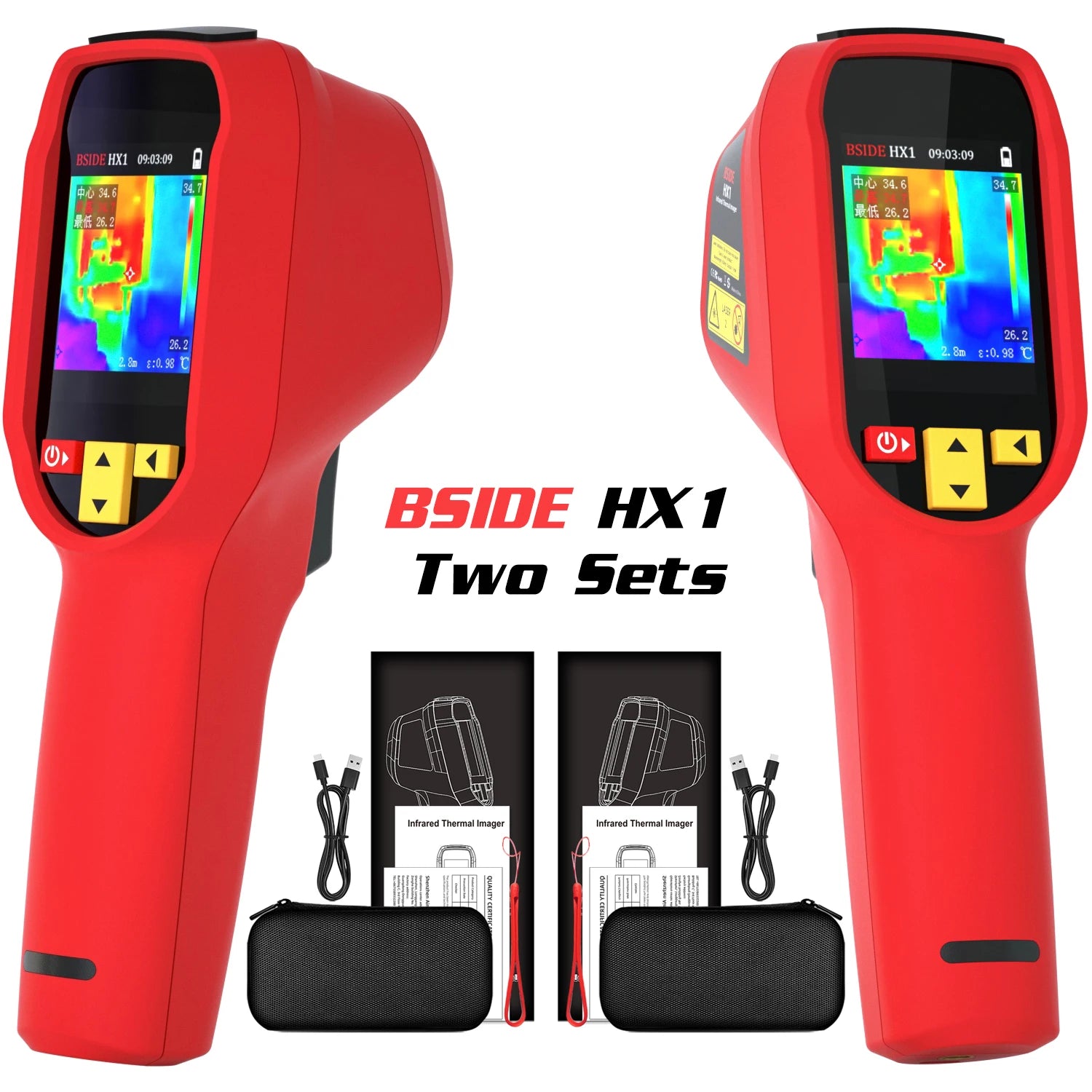

Color HX1 Two Sets BSIDE HX1

Ships From United States

SPECIFICATIONS

Brand Name: BSIDE

Certification: CE,FCC,RoHS

Model Number: BSIDE HX1

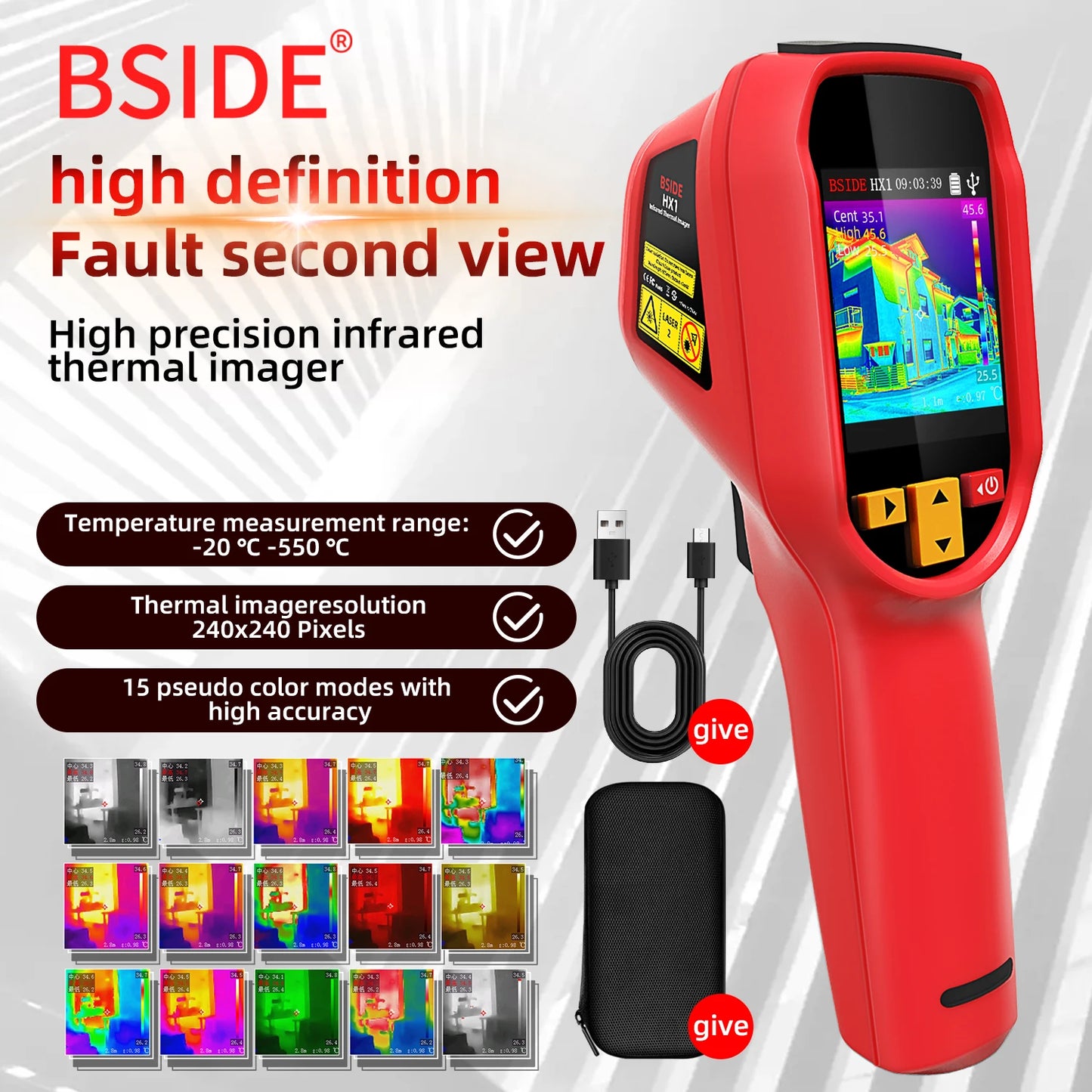

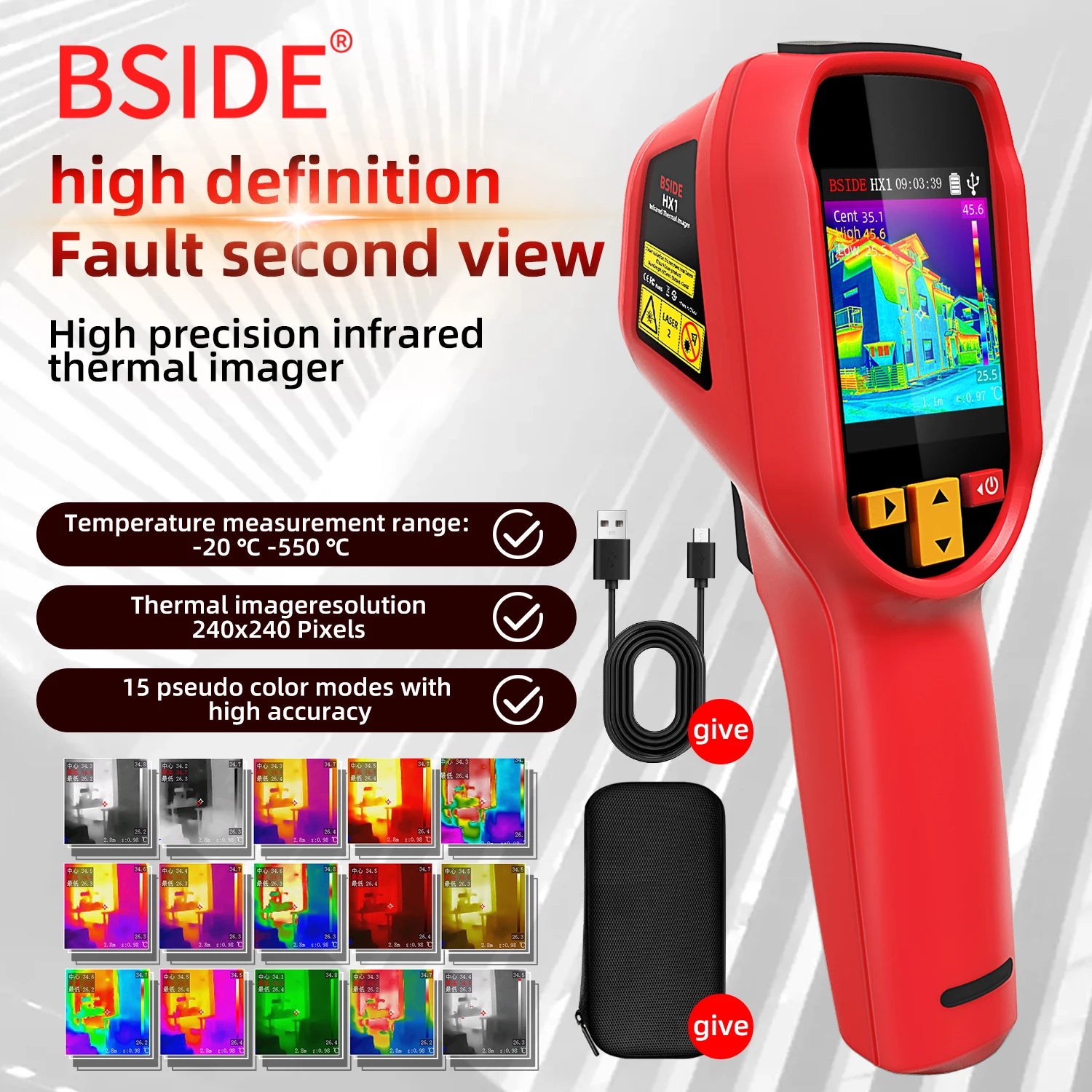

BSIDE Handheld Thermal Imaging Camera-HX1 240×240IR Resolution -20~550C 15 Color Palette PC Analysis Software Industrial Tester

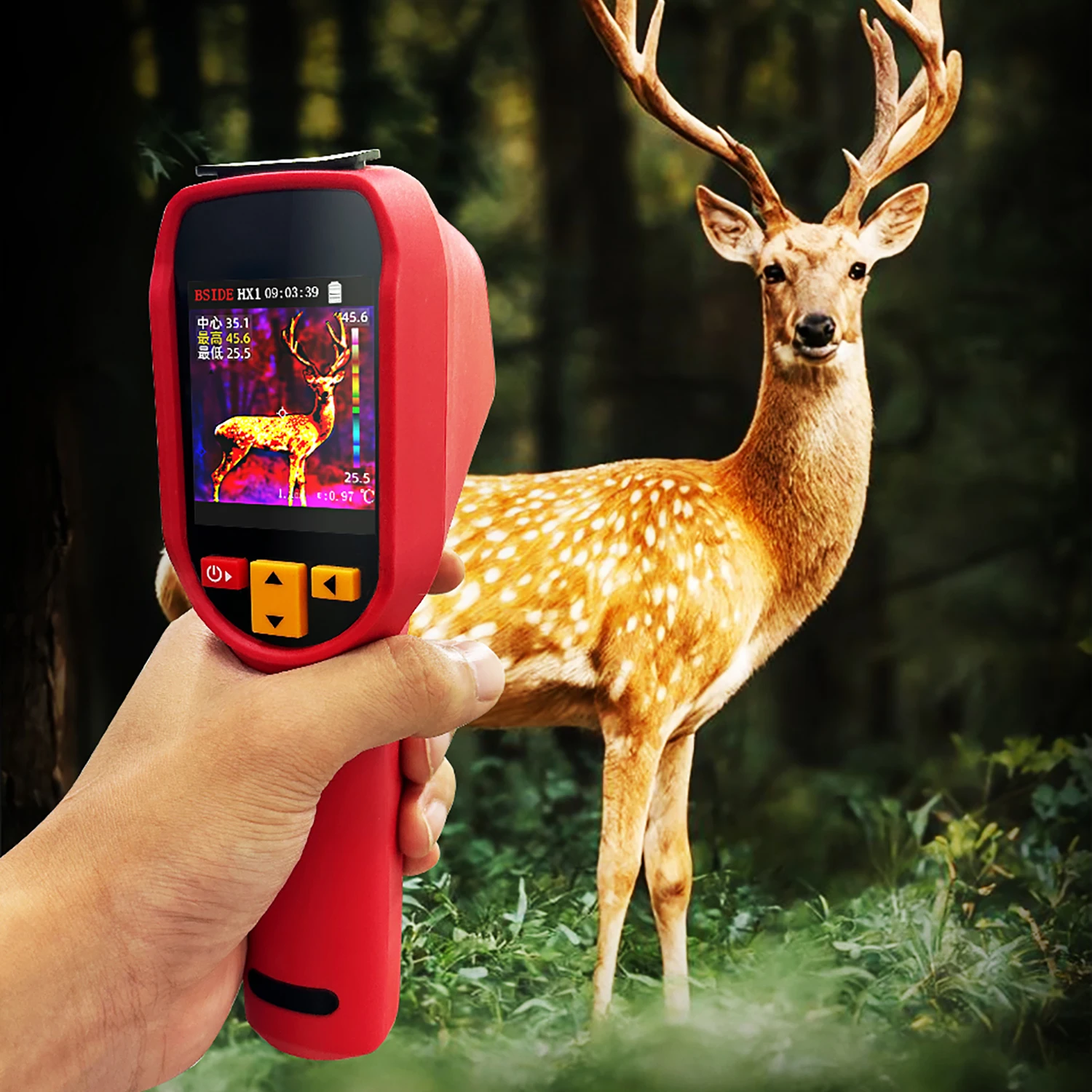

BSIDE HX1 is a brand new handheld thermal imaging camera that combines temperature measurement and imaging.

With IR resolution 240×240，2.4-inch screen，15 pseudo color modes withhigh accuracy High and low temperature alarm Adjustable emissivity Data storage and export Temperature analysis of stored pictures is possible.

The body adopts double injection molding process Durable.

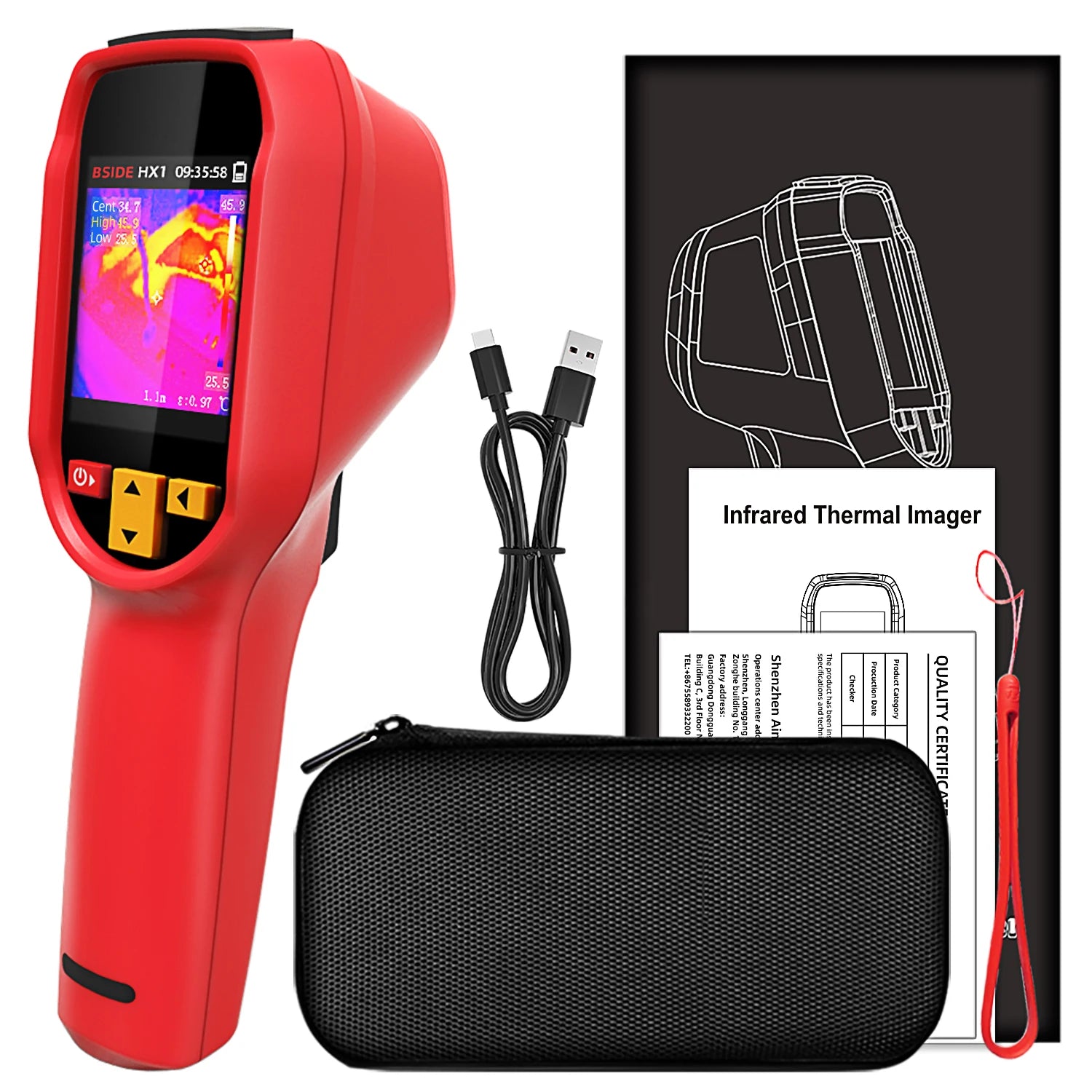

Also comes with a high-quality EVA handbag.

Main features of HX1

IR resolution: 240 × 240

Screen: 2.4 inch LCD screen

Frame rate: 25Hz

15 pseudo color modes with

Temperature measurement range: -20 °C~550 °C

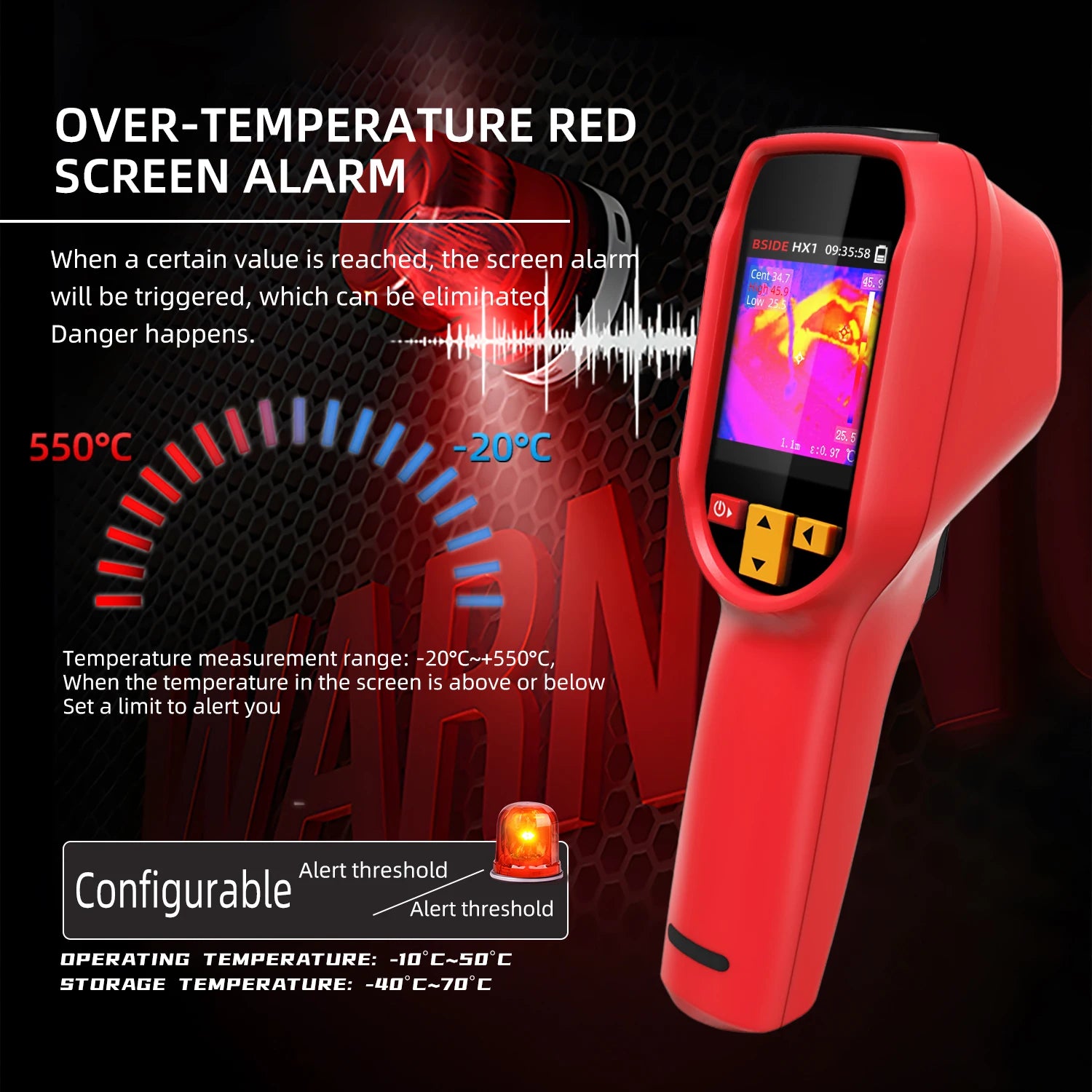

High and low temperature alarms: image, buzz, LED flashing

Laser Indicator/LED Illumination Laser Indicator/LED Illumination

Emissivity: 0.01~1

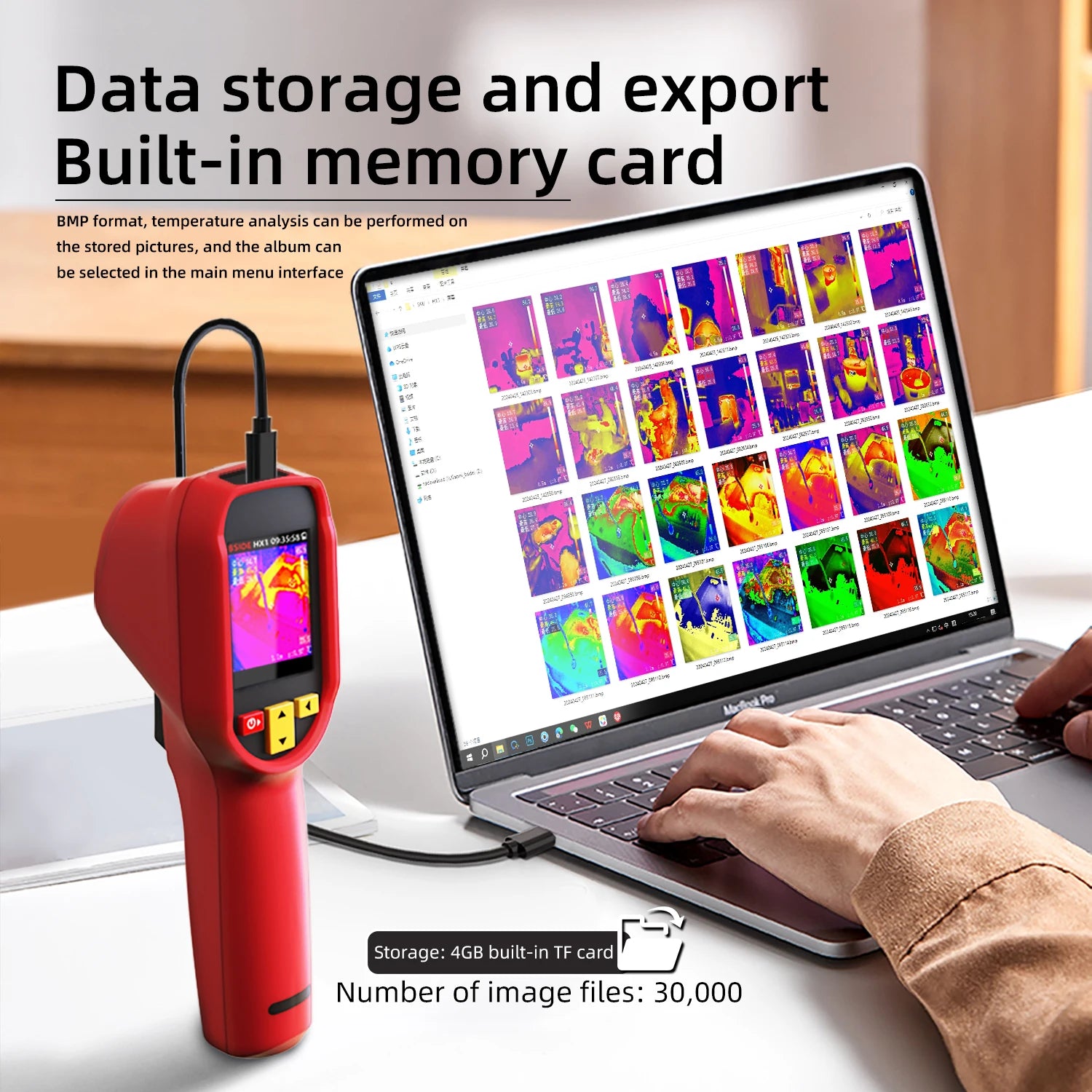

Storage: 4GB built-in TF card

Adjustable emissivity

Power supply: 2500mA lithium battery

Three-proof design: IP54/1.5m anti-drop

The bottom design has screw holes for use with a tripod

Supports multiple languages: Chinese, English, German, Italian, French, Spanish, Japanese;

Buy early version HX1 buyers, or need to update the Russian language, can download language pack upgrade system through the following link:

https://www.mediafire.com/file/vrcwjz3t738qelc/HX1-Update.rar/file

Performance Indicators
Sensor type	Vanadium oxide (VOx) microcalorimeter
Response Band	8~14pm
Thermal image resolution	240x240 Pixels
Noise equivalent temperature difference(NETD)	≤60 mK(@25°C,F#1.0)

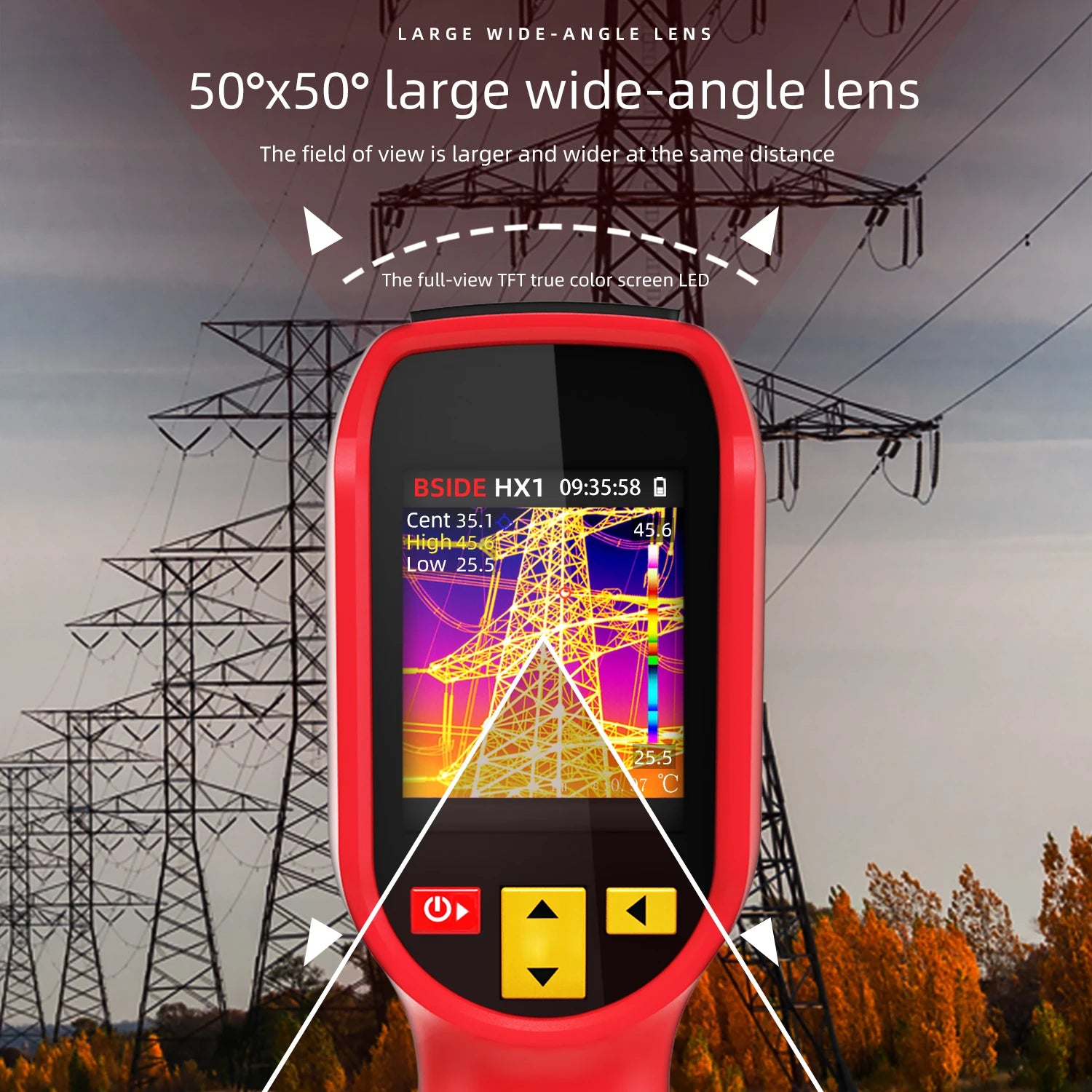

Angle of view(FOV)	50.0°(H)×50°(V)/72.1°(D)
Spatial resolution (IFOV)	8.89 mrad
Frame rate	25Hz
The focal length of the imaging lens	1.35 mm
Temperature measuring focal length	0.3m~3m Adjustable
Temperature range	-20℃~550℃
Accuracy of temperature measurement	±2℃ or±2%of the reading (take the larger value of the reading)
Unit of temperature measurement	Celsius,Fahrenheit,Kelvin
Temperature resolution	0.1℃
Emissivity	0.01~1.00 Adjustable
Temperature measurement shows	Center point temperature measurement, high and low temperature tracking
Swatches	White Hot,Black hot,Fusion 1,Rainbow, Fusion 2,Iron Red 1,Iron Red 2, Bark brownColor 1,Color 2, lce fire,Rain,Green hot, Red Hot,Dark blue
Display screen	2.4 inches TFT LCD
Display resolution	320×240
Key	Power Key,up key,Down Key, Return key,Trigger key
LaserPointer	Yes
Temperature Alarm	Screen font color alarm
Image storage	Built-in memory card
Number of image files	30000
Image format	BMP
Shock/vibration	GB/T 2423.5-2019;GB/T2423.10-2008
Electromagnetic compatibility(EMC)	GB/T17799.2,GB17799.3-2012
Protection level	IP54
Installation mode	Tripod mount UNC-20
Focus mode	Auto focusing
Hardware interface	Type-C USB
Battery type	Rechargeable lithium battery (3.7V/2500mAh)
The working hours of the battery	>7h@25℃
Charging time	<3h@25°℃
Charging voltage/current	5V/2A
Boot speed	~8 seconds
Automatic shutdown	Diable(default) (optional 10 Min,20 Min,30 Min, 40 Min,50 Min,60 Min,Disable)
Operating temperature	-10°C~50°C
Storage temperature	-40°C~70°℃
Working humidity	≤85%RH(Non-condensing)
Drop	1.5m
Product dimensions	193.459.477.4mm
Product weight	277g
